Units

Unit under test header

Overview

A Unit is a physical object being tested. Each Unit has a unique serial number and is defined by part number and revision for complete traceability.

In TofuPilot, we use "Unit" as the standard term. However, you may also see "Unit under test" (UUT) or "Device under test" (DUT) in OpenHTF and other testing frameworks. All refer to the same concept.

Create Units

Units are created automatically when creating a Run.

Parameters

OpenHTF: Define parameters in the Test constructor (part_number, revision, batch_number) and pass the serial number to test.execute().
Python: Use the unit_under_test dictionary in create_run() to define serial_number, part_number, revision, and batch_number.

Prop	Type	Default
`unit_under_test?`	`dict`	–
`serial_number?`	`str`	–
`part_number?`	`str`	–
`revision?`	`str (optional)`	`A`
`batch_number?`	`str (optional)`	–

from openhtf import Test
from tofupilot.openhtf import TofuPilot

def main():
  test = Test(
      procedure_id="FVT1",
      part_number="PCB01",             # required
      revision="A",                    # optional
      batch_number="12-24",            # optional
  )
  with TofuPilot(test):
      test.execute(lambda: "SN-0001")  # Unit serial number (required)

if __name__ == "__main__":
  main()

from tofupilot import TofuPilotClient

def main():
  client = TofuPilotClient()

  client.create_run(
      procedure_id="FVT1",
      unit_under_test={
          "serial_number": "SN-0001", # Unit serial number (required)
          "part_number": "PCB01",     # required
          "revision": "A",            # optional
          "batch_number": "12-24",    # optional
      },
      run_passed=True,
  )

if __name__ == "__main__":
  main()

With OpenHTF, you can decide whether to assign the serial number at the beginning of the test or later during execution. For more details, see the Operator UI section in the OpenHTF documentation.

Batch Number

Include the batch_number field in your script. TofuPilot will display it with the run and let you filter analytics by batch.

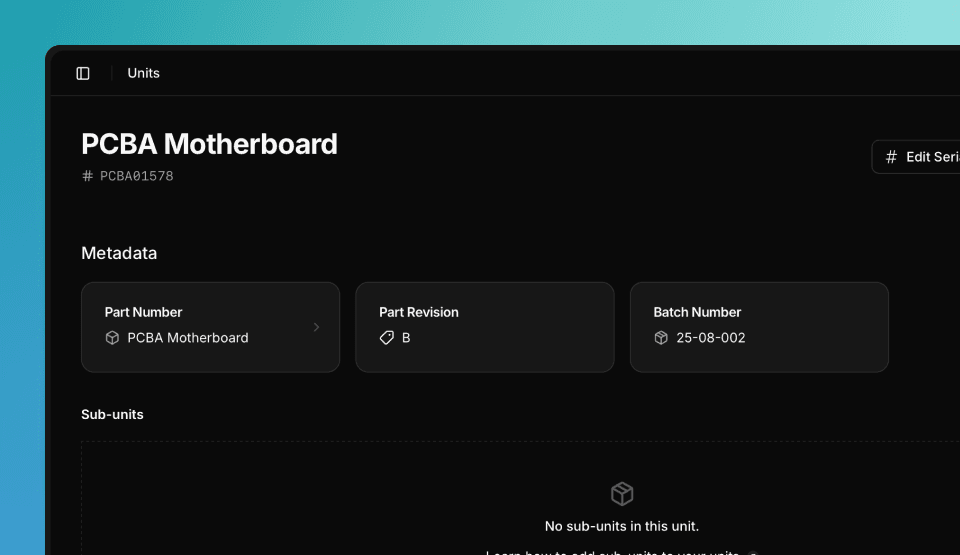

Batch number in run metadata

Revision

Specify the revision field. If omitted, revision A is assumed. Revisions are shown in the Inventory and Unit pages, and can be used to segment your analytics.

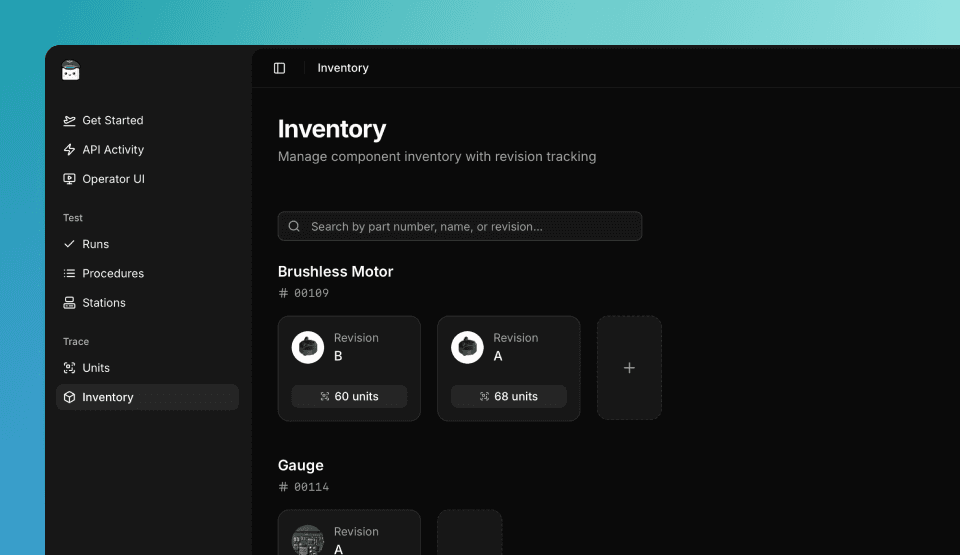

Revision displayed in inventory

Sub-units

Sub-units are smaller Units that get assembled into a larger Unit. Each sub-unit has its own serial number and test history.

OpenHTF: Define sub_units parameter in the Test constructor as a list of dictionaries with serial_number of each sub-unit.
Python: Use the sub_units field in create_run() as a list of dictionaries containing the serial_number of previously tested sub-units.

Prop	Type	Default
`sub_units?`	`array (optional)`	–
`serial_number?`	`str (optional)`	–

from openhtf import PhaseResult, Test
from tofupilot.openhtf import TofuPilot

# Please ensure both units PCB1A001 and LEN1A001 exist before running this script

def main():
  test = Test(
      procedure_id="FVT2",  # Create the procedure first in the Application
      part_number="CAM1",
      sub_units=[{"serial_number": "PCB1A001"},
                  {"serial_number": "LEN1A001"}],
  )
  with TofuPilot(test):
      test.execute(lambda: "CAM1A001")


if __name__ == "__main__":
  main()

from tofupilot import TofuPilotClient

# Please ensure both units PCB1A001 and LEN1A001 exist before running this script

def main():
  client = TofuPilotClient()

  client.create_run(
      procedure_id="FVT2",  # Create the procedure first in the Application
      unit_under_test={"serial_number": "CAM1A001", "part_number": "CAM1"},
      run_passed=True,
      sub_units=[{"serial_number": "PCB1A001"},
                  {"serial_number": "LEN1A001"}],
  )


if __name__ == "__main__":
  main()

The sub-units must already exist as Units in TofuPilot when creating the Run. Ensure each sub-unit has been tested and registered before referencing it in the assembly.

Modify Units

Modify units in two ways:

In the app: Click a unit from a Run page to open its Unit page and edit serial number, part number, or revision
In your script: Change information directly when creating Runs - updated values will reflect in the Unit

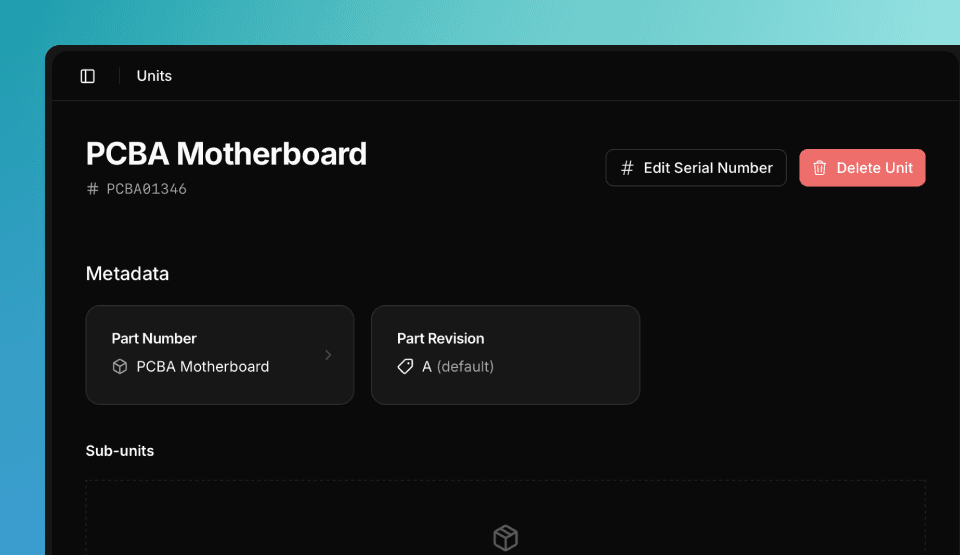

Modify unit metadata

Unit Activity

Track unit activity on its page. Shows all tests performed on the unit, grouped by Procedure name, and changes made when creating Runs (adding or removing sub-units, number of Runs by Units with Procedure name).

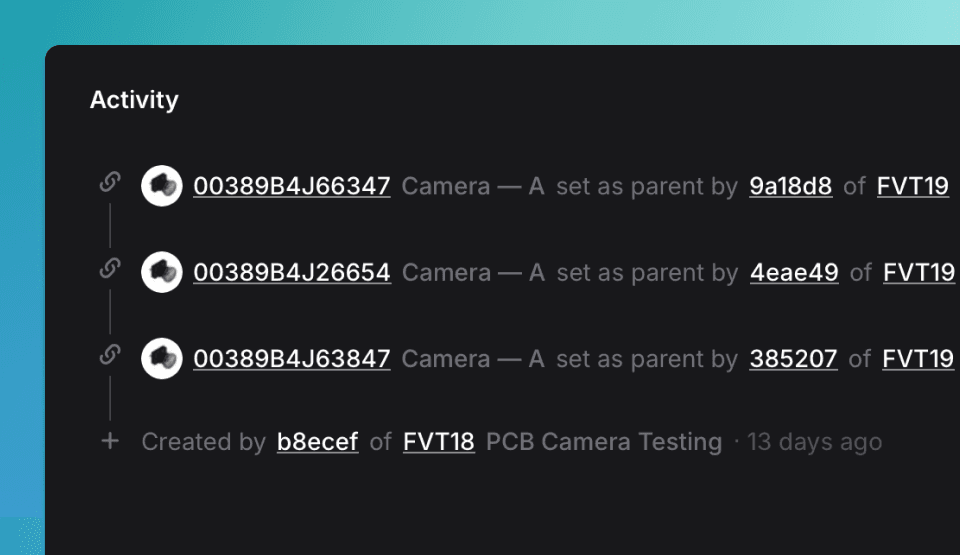

Unit and sub-unit view with their serial numbers

Delete Units

Delete units either:

In the app: from the unit’s page
Via API: using the delete_unit() function to automate cleanup
