Phases

Organize your test flow by breaking it down into multiple phases.

Overview

A hardware test typically consists of several phases that perform measurements and validation. TofuPilot provides an easy way to record phase details and analyze performance across all executions, giving you precise analytics on phase failure rates and durations.

Integration

You can create and add various test phases and view the automatically generated reports on the Run page.

Required parameters

import openhtf as htf
from tofupilot.openhtf import TofuPilot

def phase_one(test):                      # Phase name is the function name
    return htf.PhaseResult.CONTINUE       # Pass status

def main():
    test = htf.Test(
        phase_one,
        procedure_id="FVT1",
        part_number="PCB1"
    )

    with TofuPilot(test):
        test.execute(lambda: "PCB1A001")  # duration and start time are automatically set

if __name__ == '__main__':
    main()

Name
name
Type
str
Description
The name of the phase.
Name
outcome
Type
"PASS" | "FAIL" | "ERROR" | "SKIP", required
Description
Outcome of the phase. Example: "PASS"
Name
start_time_millis
Type
number
Description
A Unix epoch timestamp in milliseconds representing the start time of the phase. Example: 1726147200000
Name
end_time_millis
Type
number
Description
A Unix epoch timestamp in milliseconds representing the end time of the phase. Example: 1726147230000

Optional parameters

import openhtf as htf
from tofupilot.openhtf import TofuPilot

# Decorator to set measurement name, unit and limits
@htf.measures(
htf.Measurement("voltage")
.in_range(3.1, 3.5)
.with_units(units.VOLT)
)
# Phase returns a Pass status because measurement (3.3) is within defined limits [3.1, 3.5]
def phase_voltage_measure(test):
    test.measurements.voltage = 3.3

def main():
    test = htf.Test(
    phase_voltage_measure,
    procedure_id="FVT1",
    part_number="PCB1"
    )

    with TofuPilot(test):
        test.execute(lambda: "PCB1A001")

if __name__ == "__main__":
    main()

Name
measurements
Type
array, optional
Description
The array of one or several measurement in one phase.
Name
name
Type
string, required
Description
The name of one measurement.
Name
outcome
Type
"PASS" | "FAIL" | "UNSET", required
Description
Outcome of the measurement. Example: "PASS"
Name
measured_value
Type
number | string | boolean | JSON, optional
Description
The value of the measurement.
Name
units
Type
string, optional
Description
The units of the value. Examples: Celsius Degrees, Voltage
Name
lower_limit
Type
number, optional
Description
Minimum threshold. Only taken into account if measured_value is a number. Example: 3.2
Name
upper_limit
Type
number, optional
Description
Maximum threshold. Only taken into account if measured_value is a number. Example: 13.2

In-app view

Run page

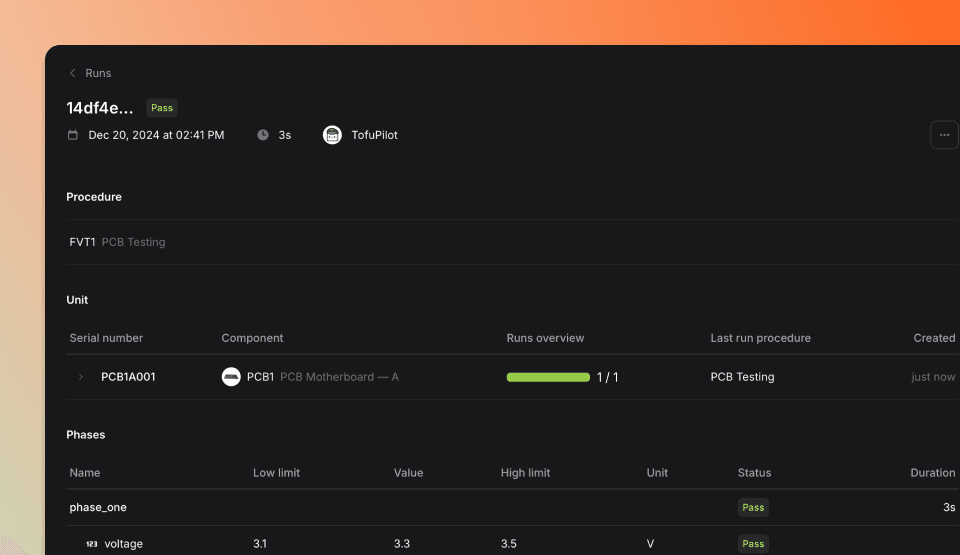

You can view each test phase in the Phases section on the Run page.

Procedure Page

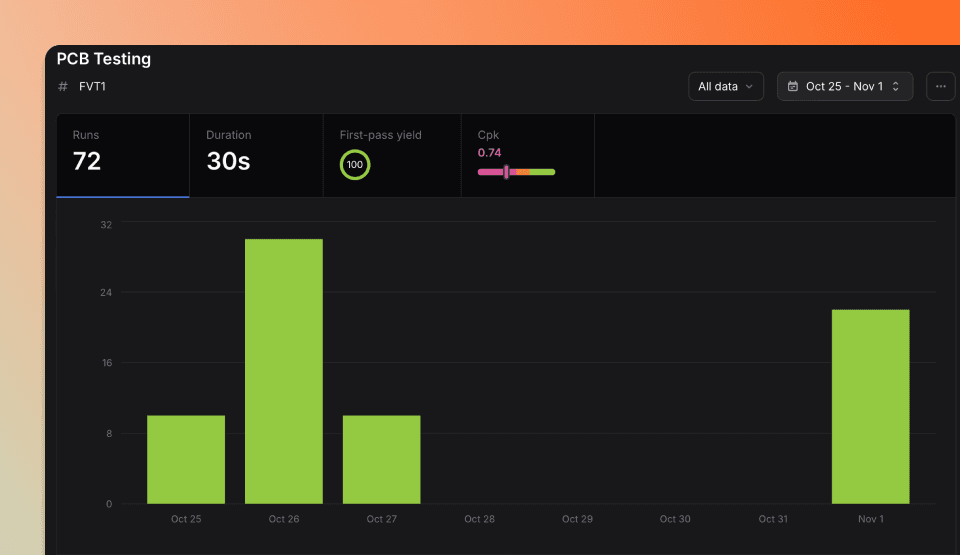

Clicking on a test phase from the Run page redirects you to the Procedure page, where you can see all executed runs of this procedure, sorted by that phase. You can navigate between different tabs to view the average Duration for each phase, the Yields, quantity of Runs, and Cpk.

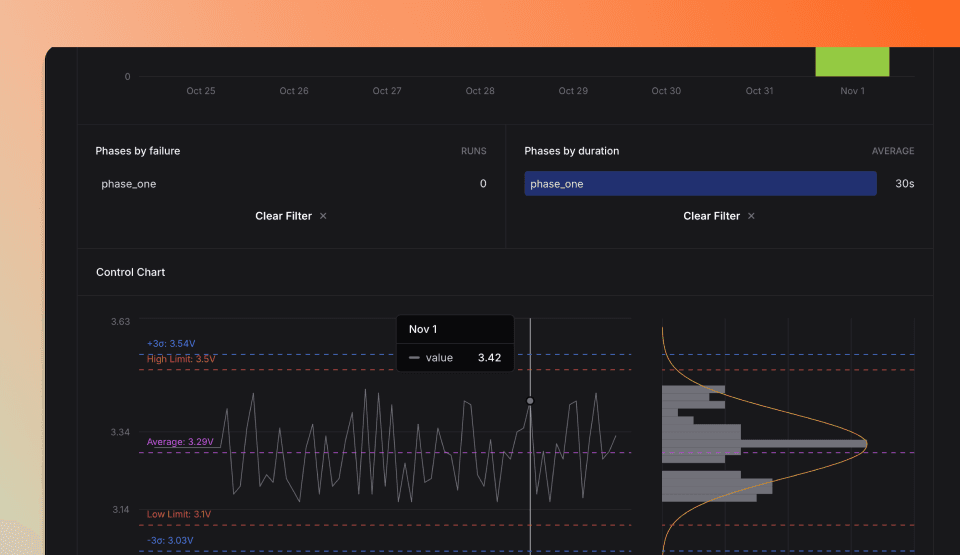

You can view phase details in the tabs or the Control Chart by clicking on a phase (e.g., phase_one). The Control Chart displays limits lower_limit and upper_limit and the 6-sigma standard deviation, calculated automatically.

If the limit definitions have changed over time, the most recent limits provided will be used.

To unselect a phase, click its name on the top bar of the page or click on Clear Filter.

Advanced integration

You can find an example of Phases functionalities in this script, including measured values, limits, units, and multiple measurements.

import openhtf as htf
from tofupilot.openhtf import TofuPilot
from openhtf.util import units

# Phase without measurement
def phase_connect():
    htf.PhaseResult.CONTINUE

# Phase with one measure
@htf.measures(htf.Measurement("firmware_version").equals("v2.5.1"))
def phase_firmware_version_check(test):
    test.measurements.firmware_version = "v2.5.1"

# Phase with multiple measurements
@htf.measures(
    htf.Measurement("input_voltage").in_range(3.1, 3.5).with_units(units.VOLT),
    htf.Measurement("output_voltage").in_range(1.1, 1.3).with_units(units.VOLT),
)
def phase_voltage_measurements(test):
    test.measurements.input_voltage = 3.3
    test.measurements.output_voltage = 1.2

def main():
    test = htf.Test(
        phase_connect,
        phase_firmware_version_check,
        phase_voltage_measurements,
        procedure_id="FVT2",
        procedure_name="Functional PCBA Testing",
        part_number="PCB1",
    )

    with TofuPilot(test):
        test.execute(lambda: "PCB1A002")

if __name__ == "__main__":
    main()

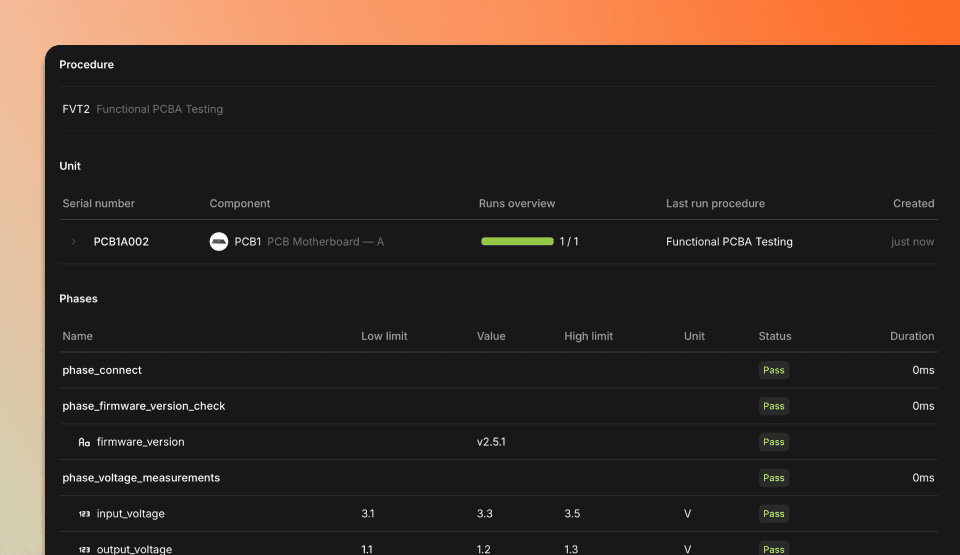

You can see the result on the Run page.

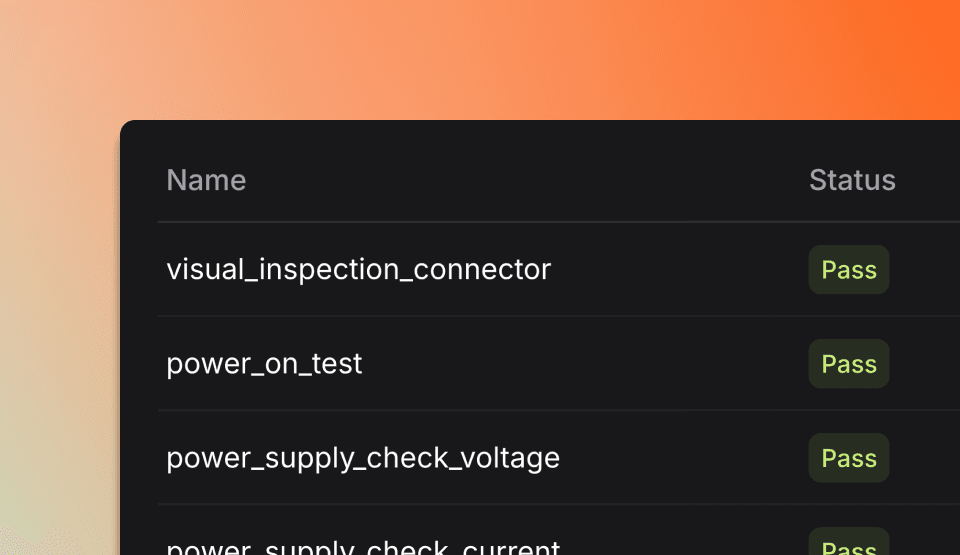

Phase section header showing test phase management whithin TofuPilot.
