TofuPilot Framework

The TofuPilot Framework is an open-source test framework purpose-built for hardware. It brings:

• Rich measurements: Capture typed values, waveforms, and aggregations with validation

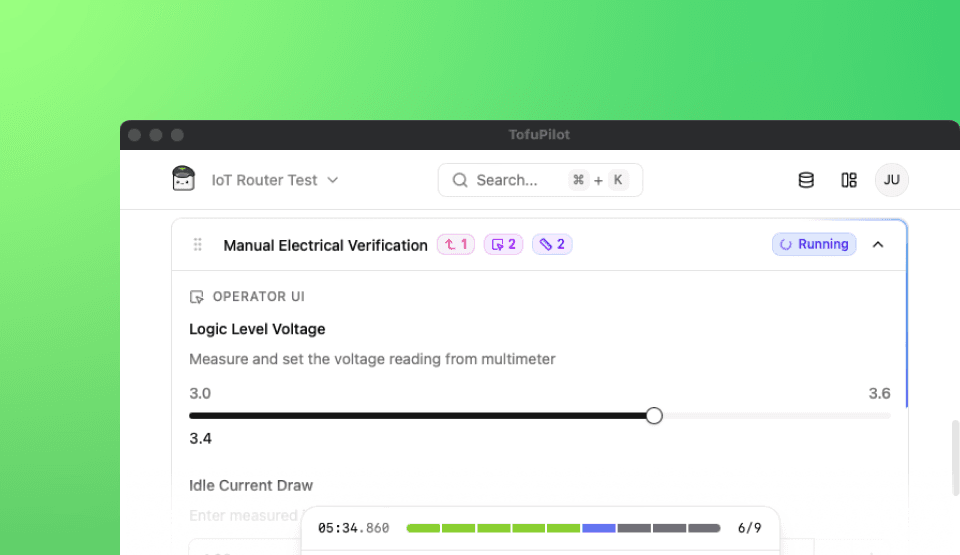

• Operator UI: Create interactive operator UIs with no frontend development required
• Unit traceability: Identify each unit under test by serial number and track its metadata across runs
• Parallel execution: Run multiple phases and units simultaneously to reduce cycle time
• Equipment drivers: Reusable plugs to connect any test equipment or external resource
• Cross-platform support: Build once, deploy on Windows, Linux or macOS

A central procedure .yaml file defines the sequence. Phases run any logic you write as simple Python functions, and plugs connect any instrument or resource as Python classes.

Procedures can be run in development or station mode using the TofuPilot CLI, a lightweight executable available for all major operating systems and architectures. On stations, the CLI streams tests in real time to the dashboard, so you can control runs remotely and deploy procedure updates on a push. When the network drops, runs queue offline and sync once it returns.

The framework and CLI are both open-source under the MIT license. Both are built on a Rust engine that runs phases and slots in parallel, while everything you write stays plain Python.

Getting started

Deploy a template to a station

Start from a template, deploy it, then adapt the code.

TofuPilot Framework Starter

Declarative YAML procedure with phases and measurements

tofupilot/template-framework-starter

Start from scratch

Build it yourself, locally first.

curl -fsSL https://tofupilot.sh/install | sh

curl -fsSL https://tofupilot.sh/install | sh

$p = "$env:TEMP\tp-install.ps1"; irm https://tofupilot.sh/install.ps1 -OutFile $p; powershell -ExecutionPolicy Bypass -File $p; ri $p -EA 0

Example procedure

A procedure is a .yaml file that declares phases and plugs, plus the Python they reference. This one reads a voltage from a power supply and validates it:

name: Battery Functional Test
version: 1.0.0

unit:
  serial_number:
    default_value: "BAT000001"
  part_number:
    default_value: "BAT-001"

plugs:
  - name: power_supply
    python: plugs.psu:PowerSupply

main:
  - name: Measure Voltage
    python: phases.measure_voltage
    measurements:
      - name: voltage
        unit: V
        validators:
          - operator: ">="
            expected_value: 4.8
          - operator: "<="
            expected_value: 5.2

def measure_voltage(measurements, power_supply):
    measurements.voltage = power_supply.read_voltage()

class PowerSupply:
    def read_voltage(self) -> float:
        return 5.03

Run it from the procedure directory with tofupilot run.
